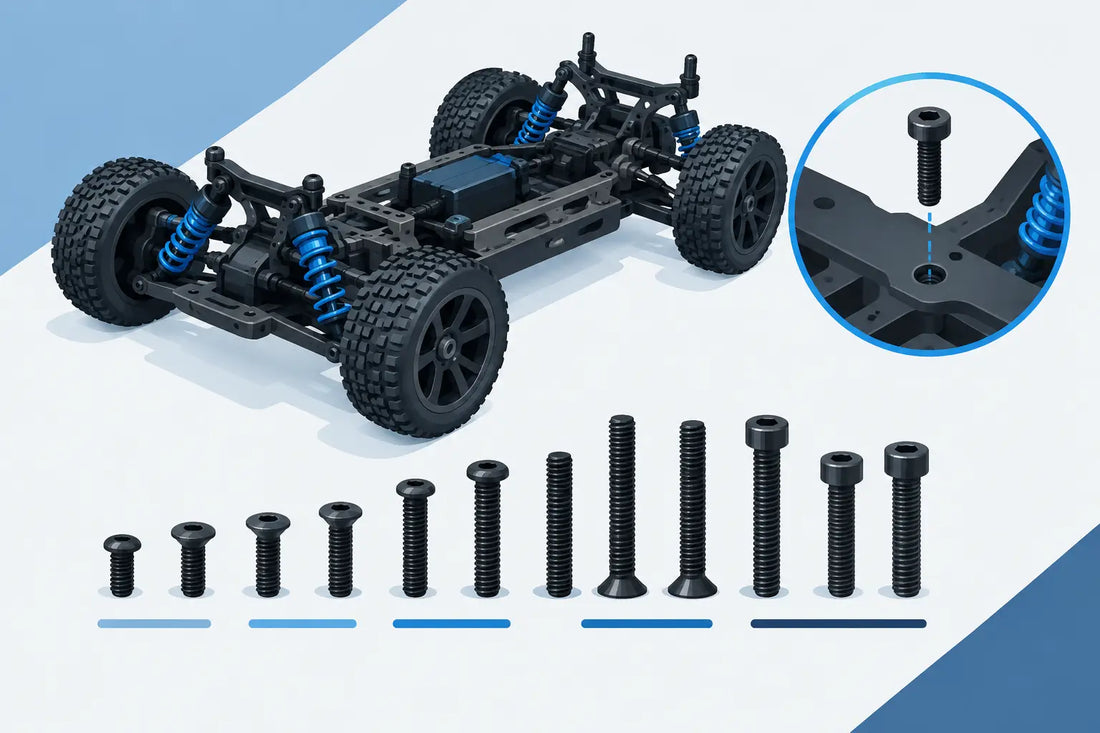

RC Chassis Screw Sizing Guide for Better Fits

A missing chassis screw can stop a rebuild just as effectively as a failed bearing. The problem is that an RC chassis screw sizing guide cannot safely begin and end with “it looks like an M3”. Thread type, measured length, head profile and the material receiving the screw all matter. Get one wrong and you risk a proud-fitting chassis, damaged plastic threads or a screw that bottoms out before the part is secure.

For most hobby-grade RC vehicles, correct hardware selection is a practical measurement job rather than a guess. Use the original screw where possible, check the vehicle manual when it specifies hardware, and measure the mounting point before ordering replacements.

RC chassis screw sizing guide: read the size correctly

Metric RC screws are normally described as diameter followed by length. An M3 x 10 screw has a 3 mm thread diameter and a 10 mm length. The figure after the x is not always measured from the same place, however. Head style changes the reference point.

For button-head, cap-head and pan-head screws, length is measured from the underside of the head to the end of the thread. The head sits on top of the component, so it is not included in the stated length. For countersunk screws, length is measured from the top of the head because the head is designed to sit inside the countersink.

This distinction is a common source of errors. Replacing an M3 x 10 button-head screw with an M3 x 10 countersunk screw does not necessarily give the same thread engagement below the chassis surface. Check both the head form and the specified length before treating two screws as interchangeable.

The most common sizes on many 1/10 and 1/8 models include M2.5, M3, M4 and M5, but the correct size depends on the platform and mounting location. Smaller screws are often used for electronics mounts, body posts and light-duty plastic fittings. M3 hardware is widespread across chassis braces, gear covers, shock towers and general assembly points. Larger fasteners tend to appear around bumpers, suspension mounts, chassis braces and high-load areas. That is a useful starting point, not a universal fitment rule.

First identify the thread type

The screw’s thread is more important than its colour, finish or hex size. RC vehicles commonly use two broad categories: machine screws and self-tapping screws.

Machine screws for threaded metal and inserts

Machine screws have a regular, fine thread designed for a pre-threaded metal hole, captive nut or threaded insert. They are common in aluminium chassis parts, motor mounts, gearbox cases with inserts, shock towers and brace systems. Metric machine screws are usually marked or listed as M2, M2.5, M3 and so on.

Do not force a machine screw into an untouched plastic hole simply because its diameter appears correct. Its fine thread may not cut properly, and it can leave a weak or cross-threaded fixing.

Self-tapping screws for plastic parts

Self-tapping screws have a coarser, more aggressive thread that forms its own thread in plastic. They are used throughout moulded gearboxes, bumpers, battery trays, guards and chassis components. Product descriptions may call them self-tappers, thread-forming screws or simply specify their diameter and length.

A self-tapper removed from plastic should generally be replaced with the same style. A machine screw of similar diameter can feel loose, while an oversized self-tapper can split the boss or remove too much material from the hole. Plastic threads only tolerate so many mistakes.

When refitting a self-tapper into an existing plastic thread, turn it anti-clockwise gently until you feel it drop into the original thread path. Then tighten clockwise. This helps the screw follow the formed thread rather than cutting a new one each time.

Measure diameter, length and head before ordering

Digital callipers are the most reliable tool for hardware identification. Measure across the outside of the threads, not the unthreaded shank or the head. A reading close to 3 mm identifies an M3-size screw; a reading close to 4 mm identifies M4.

Then measure the length according to the head style. If the original has been lost, measure the depth of the hole and the combined thickness of the parts being clamped. Leave sensible clearance at the bottom of a blind hole. A screw that is 2 mm too long may seem harmless, yet it can press into a differential case, contact a gear, distort a plastic housing or crack the far side of a mounting boss.

Head diameter also deserves attention. A button-head often spreads load well on plastic and has a low profile. A cap-head gives better tool engagement and is common where access permits. A countersunk head is intended for a countersunk recess and should sit flush rather than standing proud. Using a button-head in a countersunk hole concentrates load on a small contact area; using a countersunk screw in a flat hole pulls the head into the component as it tightens.

Finally, check the drive type. Most modern premium RC hardware uses hex socket drives, often 1.5 mm, 2.0 mm, 2.5 mm or 3.0 mm depending on the screw. The correct quality driver is part of correct fitment. A worn hex driver rounds a screw quickly, particularly on small M2 and M2.5 hardware.

Choose length for thread engagement, not maximum depth

More thread engagement is not always better. A screw needs enough engaged thread to clamp the component securely, but excessive length creates the risks of bottoming out and interference. In a metal threaded hole, the available thread depth is fixed. In plastic, the useful depth is limited by the length and condition of the moulded boss.

As a practical check, assemble the parts without fully tightening and look at how much thread enters the receiving hole. If the screw turns firm before the component is held down, it is likely bottoming out. If it reaches the end of the hole with only a few threads engaged, it may be too short. Never compensate for a wrong length by applying more force.

Washer use can alter effective length too. Adding a washer under a button-head reduces the thread reaching the hole. That can be helpful when a screw is marginally long or when spreading load across a plastic part, but it is not a substitute for selecting the right hardware. Keep washers where the manufacturer intended them, especially around battery retainers, chassis braces and vulnerable plastic tabs.

Match the screw material to the job

Steel screws are the standard choice for many chassis locations because they offer good strength and resist repeated removal better than softer aluminium hardware. Black-oxide steel is common, although it can corrode if stored wet. Stainless steel improves corrosion resistance, useful for wet-weather bashers, crawlers and vehicles cleaned regularly after use, but it is not automatically the strongest option for every high-load fixing.

Titanium reduces weight and resists corrosion, but it costs more and offers no benefit where a low-stress screw is hidden deep in a gearbox. Aluminium screws are light and available in many colours, yet they are easier to damage and should be reserved for appropriate low-load locations. Avoid aluminium hardware for critical suspension, steering or drivetrain mounts unless the vehicle manufacturer specifically supports its use.

If a steel screw threads into aluminium, use only a small amount of suitable threadlock where the screw enters metal and vibration could loosen it. Do not apply threadlock to screws entering plastic. The chemical can attack some plastics and makes routine servicing unnecessarily difficult.

Tightening without damaging the chassis

The correct screw can still fail if it is overtightened. Metal-to-metal fasteners should be snug and secure, with threadlock used only where appropriate. Plastic screws need a lighter touch. Stop as soon as the head seats and the component no longer moves. Continuing to turn after that point strips the formed thread, even if the screw still appears to be in place.

Pay attention to the feel through the driver. A screw that suddenly turns freely in plastic has stripped the hole. A screw that becomes tight immediately, before the head reaches the part, may be cross-threaded or too long. Remove it and inspect rather than trying to power through.

For a damaged plastic hole, the best repair depends on its role. A low-load cover fixing may accept a correctly sized replacement self-tapper or a purpose-made repair solution. A suspension mount, shock tower or gearbox mounting point deserves a more durable repair, such as the correct insert or replacement component. Do not rely on glue in a structural chassis fixing where the part will be removed for servicing.

Keep hardware organised during a rebuild

Mixed screw piles create avoidable fitting problems. As parts come off, group screws by assembly in labelled trays or small bags: front suspension, centre drivetrain, rear gearbox, electronics and bodywork. Take a clear photograph before removing complex assemblies, especially where two similar screw lengths are used side by side.

When an original screw is unavailable, record its diameter, length, head type, thread type and location before fitting the replacement. This turns the next rebuild into a controlled job rather than another round of measuring. For model-specific hardware and rebuild parts, 888-RC’s fitment-led approach can also reduce the uncertainty of matching general-purpose fasteners to a particular platform.

A correctly sized chassis screw should disappear into the job: it seats cleanly, clamps the part without distortion and comes back out intact when maintenance is due. That is the standard worth aiming for on every rebuild.
